Detail produk:
|
| Kata kunci: | Kapasitor Pengaman Keramik | Bahan: | Keramik |
|---|---|---|---|
| Fitur: | Memenuhi Standar Keamanan Berbagai Negara | Jenis Pemasok: | Pabrikan asli, ODM |
| Kapasitas: | 10pf ~10000pf | Aplikasi: | Panel kontrol berbagai peralatan rumah tangga kecil |
| Menyoroti: | Kerugian Kecil Kapasitor Keselamatan Y2,Kapasitor Keselamatan Y2 151K,Kapasitor Pengaman Keramik Filter Daya |
||

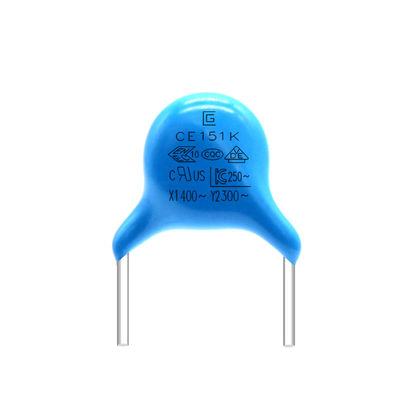

Kerugian Kecil 151K 300VAC Y2 Safety Capacitor Dapat Menahan Dampak Tegangan dan Arus Lonjakan Puncak Besar
Fitur:
Memenuhi standar keamanan berbagai negara
Struktur kompak
Hemat biaya
Dilapisi dengan resin epoksi
Aplikasi:
1. Sangat cocok untuk sirkuit penekan kebisingan sirkuit catu daya peralatan elektronik
2. Dapat digunakan dalam penggandengan antena dan sirkuit bypass
3. Panel kontrol berbagai peralatan rumah tangga kecil
4. Penyaring daya
5. Beban AC frekuensi tinggi
6. Mengalihkan catu daya
7. Ballast elektronik
8. Lampu LED
| Standar Referensi Spesifikasi | IEC 60384-14 ;EN 60384-14 ;IEC UL60384 ;K 60384 |
| Monogram yang Disetujui | VDE / ENEC / IEC / UL / CSA / KC / CQC |
| Subkelas ;Nilai Tegangan (UR) | X1 / Y1/Y2 ;400VAC / 300VAC/500VAC |
| Rentang kapasitansi | 10pF hingga 10000pF |
| Bukti Tegangan | 4000VAC selama 1 menit/2000VAC selama 1 menit/1800VAC selama 1 menit |
| Toleransi Kapasitansi | Y5P±10%(K) ;Y5U,Y5V±20%(M) diukur pada 25℃,1Vrms,1KHz |
| Faktor Disipasi (tgδ) | Y5P,Y5U tgδ≤2.5% ;Y5V tgδ≤5% diukur pada 25℃,1Vrms,1KHz |
| Resistansi Isolasi (IR) | IR≥10000MΩ,1 mnt,100VDC |
| Suhu Operasional | -40℃ sampai +85℃ ;-40 ℃ hingga +125 ℃ |
| Karakteristik Suhu | Y5P, Y5U, Y5V |
| Epoksi Tahan Api | UL94-V0 |
| model | lebar | ketebalan | jarak kaki | memimpin | Voltase | kapasitas | bahan | Toleransi |
| Y2-103M-Y5V | φ13mm | T3.8mm | F10mm | L3-22mm | 300V[**]C | 10000pF | Y5V | ±20% |
| Y2-472M-Y5V | φ9.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 4700pF | Y5V | ±20% |
| Y2-332M-Y5V | φ8.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 3300pF | Y5V | ±20% |
| Y2-222M-Y5V | φ7.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 2200pF | Y5V | ±20% |
| Y2-152M-Y5V | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1500pF | Y5V | ±20% |
| Y2-102M-Y5V | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1000pF | Y5V | ±20% |
| Y2-472M-Y5U | φ13mm | T3.8mm | F10mm | L3-22mm | 300V[**]C | 4700pF | Y5U | ±20% |
| Y2-332M-Y5U | φ11mm | T3.8mm | F10mm | L3-22mm | 300V[**]C | 3300pF | Y5U | ±20% |
| Y2-222M-Y5U | φ8.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 2200pF | Y5U | ±20% |
| Y2-152M-Y5U | φ8.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1500pF | Y5U | ±20% |
| Y2-102M-Y5U | φ7.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1000pF | Y5U | ±20% |
| Y2-821K-Y5U | φ7.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 820pF | Y5U | ±10% |
| Y2-681K-Y5U | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 680pF | Y5U | ±10% |
| Y2-561K-Y5U | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 560pF | Y5U | ±10% |
| Y2-471K-Y5U | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 470pF | Y5U | ±10% |
| Y2-102K-Y5P | φ10mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 1000pF | Y5P | ±10% |
| Y2-821K-Y5P | φ10mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 820pF | Y5P | ±10% |
| Y2-681K-Y5P | φ8.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 680pF | Y5P | ±10% |
| Y2-561K-Y5P | φ8mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 560pF | Y5P | ±10% |
| Y2-471K-Y5P | φ7.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 470pF | Y5P | ±10% |
| Y2-331K-Y5P | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 330pF | Y5P | ±10% |
| Y2-221K-Y5P | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 220pF | Y5P | ±10% |
| Y2-151K-Y5P | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 150pF | Y5P | ±10% |
| Y2-101K-Y5P | φ6.5mm | T3.8mm | F7.5mm | L3-22mm | 300V[**]C | 100pF | Y5P | ±10% |
Proses Produksi
Struktur produk
Penggunaan Produk
