MMKP82 Resonance Plastic Shell Double-Sided Metallized Polypropylene Film Capacitor Dalam High Voltage High Frequency Pulse Circuit 154J630V P15MM

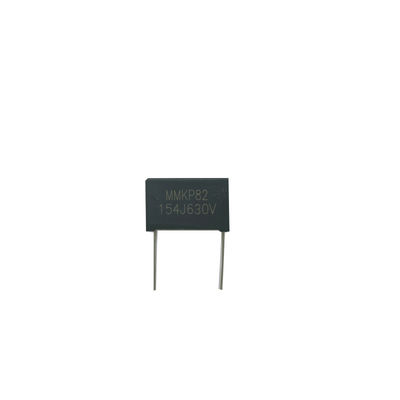

Gambar besar : MMKP82 Resonance Plastic Shell Double-Sided Metallized Polypropylene Film Capacitor Dalam High Voltage High Frequency Pulse Circuit 154J630V P15MM

Detail produk:

Tempat asal:	Cina
Nama merek:	SL
Nomor model:	154J630V P15mm

Kontak

MMKP82 Resonance Plastic Shell Double-Sided Metallized Polypropylene Film Capacitor Dalam High Voltage High Frequency Pulse Circuit 154J630V P15MM

Deskripsi

Reference Standard:	GB/T 10190(IEC 60384-16)	Climatic Category:	40/105/56
Rated Temperrature Range:	85℃ for VR(DC); 75℃ for VR(AC)	Operating Temperature Range:	-40℃~105℃ (+85℃ to +105℃: decreasing factor 1.25% per ℃ for VR (DC)) (+75℃ to +105℃: decreasing factor 1.25% per ℃ for VR (AC))
Rated Voltage:	250V, 400V, 630V, 1000V, 1600V, 2000V	Capacitance Range:	0.00022uF~3.9uF
Capacitance Tolerance:	±2%(G), ±3%(H), ±5%(J), ±10%(K), ±20%(M)	Voltage Proof:	≦0.0010 （1KHz，20℃）
Insulation Resistance:	≧50 000MΩ CR≦0.33uF ≧1 5000S CR>0.33uF (20℃，100V，1min)
Menyoroti:	Kondensator Tegangan Tinggi MMKP82 , Kondensator Frekuensi Tinggi MMKP82 , MMKP82 Resonansi Plastik Shell Kondensator

Fitur

Struktur PPLyPropylene Doublesided

Kerugian rendah dan kenaikan suhu yang melekat kecil

Koefisien suhu negatif kapasitansi

Sirkuit tahan api aktif dan pasif yang luar biasa

Aplikasi khas

Banyak digunakan dalam tegangan tinggi, frenquency tinggi dan sirkuit pulsa

Kapasitor lampu untuk lampu kompak ballast elektronik

Sirkuit snubber dan scromutaing

Struktur kapasitor

Dengan dielektrik fime polypropylene, tiang dengan fime poliester logam sisi ganda, bentuk semprotan bagian-logam twain non-induktif

Konfigurasi, elektroda timbal unilateralisme keluar dan ketenaran resindip retardant ePoxy disegel.

◆ MAX DV/DT (V/μS)

(V)	DV/DT (V/μs)
(V)	P = 7.5mm	P = 10.0mm	P = 15.0mm	P = 22.5mm	P = 27.5mm
250	1200	1000	600	300	200
400	1800	1500	900	500	300
630	3200	3200	2500	1500	900
1000	6000	6000	3300	2200	1000
1600	/	/	6500	3000	2000
2000	/	/	10.000	5000	2200

Dimensi (mm)

250DC (180VAC)						250DC (180VAC)
(UF)	W±0,5	H±0,5	T±0,5	P±0,5	D±0,5	(UF)	W±0,5	H±0,5	T±0,5	P±0,5	D±0,5
0,0068	10.0	9.0	4.0	7.5	0.6	0.18	18.0	13.5	7.5	15	0.8
0,0082	10.0	9.0	4.0	7.5	0.6	0.22	18.0	13.5	7.5	15	0.8
0,010	10.0	9.0	4.0	7.5	0.6	0.27	18.0	14.5	8.5	15	0.8
0,012	10.0	9.0	4.0	7.5	0.6	0.33	18.0	16.0	10.0	15	0.8
0,015	10.0	9.0	4.0	7.5	0.6	0.39	18.0	16.0	10.0	15	0.8
0,018	10.0	9.0	4.0	7.5	0.6	0.22	26.5	15.0	6.0	22.5	0.8
0,022	10.0	9.0	4.0	7.5	0.6	0.27	26.5	15.0	6.0	22.5	0.8
0,027	10.0	11.0	5.0	7.5	0.6	0.33	26.5	15.0	6.0	22.5	0.8
0,033	10.0	11.0	5.0	7.5	0.6	0.39	26.5	16.0	7.0	22.5	0.8
0,039	10.0	12.0	6.0	7.5	0.6	0.47	26.5	16.0	7.0	22.5	0.8
0,047	10.0	12.0	6.0	7.5	0.6	0,56	26.5	17.0	8.5	22.5	0.8
0,027	13.0	9.0	4.0	10	0.6	0.68	26.5	18.5	10.0	22.5	0.8
0,033	13.0	9.0	4.0	10	0.6	0.82	26.5	18.5	10.0	22.5	0.8
0,039	13.0	9.0	4.0	10	0.6	1.0	26.5	22.0	12.0	22.5	0.8
0,047	12.0	11.0	5.0	10	0.6	0.82	32.0	18.0	9.0	27.5	0.8
0,056	12.0	11.0	5.0	10	0.6	1.0	32.0	20.0	11.0	27.5	0.8
0,068	13.0	12.0	6.0	10	0.6	1.2	32.0	20.0	11.0	27.5	0.8
0,082	13.0	12.0	6.0	10	0.6	1.5	32.0	22.0	13.0	27.5	0.8
0,068	18.0	11.0	5.0	15	0.6	1.8	32.0	24.5	15.0	27.5	0.8
0,082	18.0	11.0	5.0	15	0.6	2.2	32.0	24.5	15.0	27.5	0.8
0.10	18.0	11.0	5.0	15	0.6	2.7	32.0	33.0	18.0	27.5	0.8
0.12	18.0	12.0	6.0	15	0.6	3.3	32.0	33.0	18.0	27.5	0.8
0,15	18.0	12.0	6.0	15	0.6	3.9	32.0	33.0	18.0	27.5	0.8

MMKP82

Kapasitor Film Polypropylene Metellized Double (tipe kotak)

Dimensi (mm)

400DC (250VAC)						400DC (250VAC)
(UF)	W±0,5	H±0,5	T±0,5	P±0,5	D±0,5	(UF)	W±0,5	H±0,5	T±0,5	P±0,5	D±0,5
0,0027	10.0	9.0	4.0	7.5	0.6	0.10	18.0	13.5	7.5	15	0.8
0,0033	10.0	9.0	4.0	7.5	0.6	0.12	18.0	13.5	7.5	15	0.8
0,0039	10.0	9.0	4.0	7.5	0.6	0,15	18.0	14.5	8.5	15	0.8
0,0047	10.0	9.0	4.0	7.5	0.6	0.18	18.0	16.0	10.0	15	0.8
0,0056	10.0	9.0	4.0	7.5	0.6	0.22	18.0	16.0	10.0	15	0.8
0,0068	10.0	9.0	4.0	7.5	0.6	0.27	18.0	19.0	11.0	15.0	0.8
0,0082	10.0	9.0	4.0	7.5	0.6	0.12	26.5	15.0	6.0	22.5	0.8
0,010	10.0	9.0	4.0	7.5	0.6	0,15	26.5	15.0	6.0	22.5	0.8
0,012	10.0	9.0	4.0	7.5	0.6	0.18	26.5	16.0	7.0	22.5	0.8
0,015	10.0	11.0	5.0	7.5	0.6	0.22	26.5	16.0	7.0	22.5	0.8
0,018	10.0	11.0	5.0	7.5	0.6	0.27	26.5	17.0	8.5	22.5	0.8
0,022	10.0	12.0	6.0	7.5	0.6	0.33	26.5	17.0	8.5	22.5	0.8
0,027	10.0	12.0	6.0	7.5	0.6	0.39	26.5	18.5	10.0	22.5	0.8
0,010	13.0	9.0	4.0	10	0.6	0.47	26.5	18.5	10.0	22.5	0.8
0,012	13.0	9.0	4.0	10	0.6	0,56	26.5	22.0	12.0	22.5	0.8
0,015	13.0	9.0	4.0	10	0.6	0.68	26.5	22.0	12.0	22.5	0.8
0,018	13.0	9.0	4.0	10	0.6	0.39	32.0	18.0	9.0	27.5	0.8
0,022	13.0	9.0	4.0	10	0.6	0.47	32.0	18.0	9.0	27.5	0.8
0,027	12.0	11.0	5.0	10	0.6	0,56	32.0	20.0	11.0	27.5	0.8
0,033	12.0	11.0	5.0	10	0.6	0.68	32.0	20.0	11.0	27.5	0.8
0,039	13.0	12.0	6.0	10	0.6	0.82	32.0	22.0	13.0	27.5	0.8
0,047	13.0	12.0	6.0	10	0.6	1.0	32.0	24.5	15.0	27.5	0.8
0,033	18.0	11.0	5.0	15	0.6	1.2	32.0	24.5	15.0	27.5	0.8
0,039	18.0	11.0	5.0	15	0.6	1.5	32.0	33.0	18.0	27.5	0.8
0,047	18.0	11.0	5.0	15	0.6	1.8	32.0	33.0	18.0	27.5	0.8

MMKP82

Kapasitor Film Polypropylene Metellized Double (tipe kotak)

Dimensi (mm)

630DC (400VAC)						630DC (400VAC)
(UF)	W±0,5	H±0,5	T±0,5	P±0,5	D±0,5	(UF)	W±0,5	H±0,5	T±0,5	P±0,5	D±0,5
0,00068	10.0	9.0	4.0	7.5	0.6	0,039	18.0	12.0	6.0	15	0.8
0,00082	10.0	9.0	4.0	7.5	0.6	0,047	18.0	12.0	6.0	15	0.8
0.0010	10.0	9.0	4.0	7.5	0.6	0,056	18.0	13.5	7.5	15	0.8
0,0012	10.0	9.0	4.0	7.5	0.6	0,068	18.0	14.5	8.5	15	0.8
0,0015	10.0	9.0	4.0	7.5	0.6	0,082	18.0	14.5	8.5	15	0.8
0,0018	10.0	9.0	4.0	7.5	0.6	0.10	18.0	16.0	10.0	15	0.8
0,0022	10.0	9.0	4.0	7.5	0.6	0.12	18.0	19.0	11.0	15.0	0.8
0,0027	10.0	9.0	4.0	7.5	0.6	0,047	26.5	15.0	6.0	22.5	0.8
0,0033	10.0	9.0	4.0	7.5	0.6	0,056	26.5	15.0	6.0	22.5	0.8
0,0039	10.0	9.0	4.0	7.5	0.6	0,068	13.0	13.0	7.0	10.0	0.6
0,0047	10.0	9.0	4.0	7.5	0.6	0,082	26.5	15.0	6.0	22.5	0.8
0,0056	10.0	9.0	4.0	7.5	0.6	0.1	26.5	15.0	6.0	22.5	0.8
0,0068	10.0	11.0	5.0	7.5	0.6	0.12	26.5	16.0	7.0	22.5	0.8
0,0082	10.0	11.0	5.0	7.5	0.6	0,15	26.5	17.0	8.5	22.5	0.8
0,010	10.0	12.0	6.0	7.5	0.6	0.18	26.5	17.0	8.5	22.5	0.8
0,012	10.0	12.0	6.0	7.5	0.6	0.22	26.5	18.5	10.0	22.5	0.8
0,0039	13.0	9.0	4.0	10	0.6	0.27	26.5	22.0	12.0	22.5	0.8
0,0047	13.0	9.0	4.0	10	0.6	0.33	26.5	22.0	12.0	22.5	0.8
0,0056	13.0	9.0	4.0	10	0.6	0.39	26.5	22.0	12.0	22.5	0.8
0,0068	13.0	9.0	4.0	10	0.6	0,15	32.0	18.0	9.0	27.5	0.8
0,0082	13.0	9.0	4.0	10	0.6	0.18	32.0	18.0	9.0	27.5	0.8
0,010	12.0	11.0	5.0	10	0.6	0.22	32.0	18.0	9.0	27.5	0.8
0,012	12.0	11.0	5.0	10	0.6	0.27	32.0	18.0	9.0	27.5	0.8
0,015	13.0	12.0	6.0	10	0.6	0.33	32.0	20.0	11.0	27.5	0.8
0,018	13.0	12.0	6.0	10	0.6	0.39	32.0	20.0	11.0	27.5	0.8
0,010	18.0	11.0	5.0	15	0.6	0.47	32.0	22.0	13.0	27.5	0.8
0,012	18.0	11.0	5.0	15	0.6	0,56	32.0	22.0	13.0	27.5	0.8
0,015	18.0	11.0	5.0	15	0.6	0.68	32.0	24.5	15.0	27.5	0.8
0,018	18.0	11.0	5.0	15	0.6	0.82	32.0	28.0	14.0	27.5	0.8
0,022	18.0	11.0	5.0	15	0.6	1.0	32.0	33.0	18.0	27.5	0.8
0,027	18.0	11 改 12	5 改 6	15	0.6	1.2	32.0	33.0	18.0	27.5	0.8
0,033	18.0	12.0	6.0	15	0.8	0,033	12	11	5	10	0.6

MMKP82

Kapasitor Film Polypropylene Metellized Double (tipe kotak)

Dimensi (mm)

1000DC (600VAC)						1000DC (600VAC)
(UF)	W±0,5	H±0,5	T±0,5	P±0,5	D±0,5	(UF)	W±0,5	H±0,5	T±0,5	P±0,5	D±0,5
0,00047	10.0	9.0	4.0	7.5	0.6	0,018	18.0	13.5	7.5	15	0.8
0,00056	10.0	9.0	4.0	7.5	0.6	0,022	18.0	13.5	7.5	15	0.8
0,00068	10.0	9.0	4.0	7.5	0.6	0,027	18.0	14.5	8.5	15	0.8
0,00082	10.0	9.0	4.0	7.5	0.6	0,033	18.0	16.0	10.0	15	0.8
0,001	10.0	9.0	4.0	7.5	0.6	0,039	18.0	16.0	10.0	15	0.8
0,0012	10.0	9.0	4.0	7.5	0.6	0,047	18.0	17.0	8.0	15.0	0.8
0,0015	10.0	9.0	4.0	7.5	0.6	0,027	26.5	15.0	6.0	22.5	0.8
0,0018	10.0	9.0	4.0	7.5	0.6	0,033	26.5	15.0	6.0	22.5	0.8
0,0022	10.0	9.0	4.0	7.5	0.6	0,039	26.5	16.0	7.0	22.5	0.8
0,0027	10.0	11.0	5.0	7.5	0.6	0,047	26.5	16.0	7.0	22.5	0.8
0,0033	18.0	12.0	6.0	10.0	0.6	0,056	26.5	17.0	8.5	22.5	0.8
0,001	10.0	12.0	6.0	7.5	0.6	0,068	26.5	17.0	8.5	22.5	0.8
0,0012	10.0	12.0	6.0	7.5	0.6	0,082	26.5	18.5	10.0	22.5	0.8
0,0015	13.0	9.0	4.0	10	0.6	0.10	26.5	18.5	10.0	22.5	0.8
0,0018	13.0	9.0	4.0	10	0.6	0.12	26.5	22.0	12.0	22.5	0.8
0,0022	13.0	9.0	4.0	10	0.6	0,15	26.5	22.0	12.0	22.5	0.8
0,0027	13.0	9.0	4.0	10	0.6	0.10	32.0	18.0	9.0	27.5	0.8
0,0033	13.0	9.0	4.0	10	0.6	0.12	32.0	18.0	9.0	27.5	0.8
0,0039	12.0	11.0	5.0	10	0.6	0,15	32.0	20.0	11.0	27.5	0.8
0,0047	12.0	11.0	5.0	10	0.6	0.18	32.0	20.0	11.0	27.5	0.8
0,0056	13.0	12.0	6.0	10	0.6	0.22	32.0	22.0	13.0	27.5	0.8
0,0068	13.0	12.0	6.0	10	0.6	0.27	32.0	24.5	15.0	27.5	0.8
0,0082	18.0	11.0	5.0	15	0.6	0.33	32.0	24.5	15.0	27.5	0.8
0,010	18.0	11.0	5.0	15	0.6	0.39	32.0	33.0	18.0	27.5	0.8
0,012	18.0	11.0	5.0	15	0.6	0.47	32.0	33.0	18.0	27.5	0.8
0,015	18.0	11.0	5.0	15	0.6	0,056	18.0	14.5	8.5	15	0.8

MMKP82

Kapasitor Film Polypropylene Metellized Double (tipe kotak)

Dimensi (mm)

1600DC (650VAC)						1600DC (650VAC)
(UF)	W±0,5	H±0,5	T±0,5	P±0,5	D±0,5	(UF)	W±0,5	H±0,5	T±0,5	P±0,5	D±0,5
0,00068	18.0	11.0	5.0	15	0.8	0,018	26.5	15.0	6.0	22.5	0.8
0,00082	18.0	11.0	5.0	15	0.8	0,022	26.5	15.0	6.0	22.5	0.8
0.0010	18.0	11.0	5.0	15	0.8	0,027	26.5	15.0	6.0	22.5	0.8
0,0012	18.0	11.0	5.0	15	0.8	0,033	26.5	16.0	7.0	22.5	0.8
0,0015	18.0	11.0	5.0	15	0.8	0,039	26.5	17.0	8.5	22.5	0.8
0,0018	18.0	11.0	5.0	15	0.8	0,047	26.5	18.5	10.0	22.5	0.8
0,0022	18.0	11.0	5.0	15	0.8	0,056	26.5	18.5	10.0	22.5	0.8
0,0027	18.0	11.0	5.0	15	0.8	0,068	26.5	22.0	12.0	22.5	0.8
0,0033	18.0	11.0	5.0	15	0.8	0,082	26.5	22.0	12.0	22.5	0.8
0,0039	18.0	11.0	5.0	15	0.8	0,039	32.0	18.0	9.0	27.5	0.8
0,0047	18.0	11.0	5.0	15	0.8	0,047	32.0	18.0	9.0	27.5	0.8
0,0056	18.0	11.0	5.0	15	0.8	0,056	32.0	18.0	9.0	27.5	0.8
0,0068	18.0	11.0	5.0	15	0.8	0,068	32.0	18.0	9.0	27.5	0.8
0,0082	18.0	12.0	6.0	15	0.8	0,082	32.0	20.0	11.0	27.5	0.8
0,010	18.0	12.0	6.0	15	0.8	0.10	32.0	20.0	11.0	27.5	0.8
0,012	18.0	13.5	7.5	15	0.8	0.12	26.5	22.0	12.0	22.5	0.8
0,015	18.0	13.5	7.5	15	0.8	0,15	32.0	24.5	15.0	27.5	0.8
0,018	18.0	14.5	8.5	15	0.8	0.18	32.0	24.5	15.0	27.5	0.8
0,022	18.0	14.5	8.5	15	0.8	0.22	32.0	24.5	15.0	27.5	0.8
0,027	18.0	16.0	10.0	15	0.8	0.27	32.0	24.5	15.0	27.5	0.8
0,033	18.0	19.0	11.0	15.0	0.8	0.33	32.0	33.0	18.0	27.5	0.8
0,015	26.5	15.0	6.0	22.5	0.8

Kapasitor Film Polypropylene Metellized Double (tipe kotak)

Dimensi (mm)

2000DC (700VAC)						2000DC (700VAC)
(UF)	W±0,5	H±0,5	T±0,5	P±0,5	D±0,5	(UF)	W±0,5	H±0,5	T±0,5	P±0,5	D±0,5
0,00022	18.0	11.0	5.0	15.0	0.8	0,0027	26.5	15.0	6.0	22.5	0.8
0,00027	18.0	11.0	5.0	15.0	0.8	0,0033	26.5	15.0	6.0	22.5	0.8
0,00033	18.0	11.0	5.0	15.0	0.8	0,0039	26.5	15.0	6.0	22.5	0.8
0,00039	18.0	11.0	5.0	15.0	0.8	0,0047	26.5	15.0	6.0	22.5	0.8
0,00047	18.0	11.0	5.0	15.0	0.8	0,0056	26.5	15.0	6.0	22.5	0.8
0,00056	18.0	11.0	5.0	15.0	0.8	0,0068	26.5	15.0	6.0	22.5	0.8
0,00068	18.0	11.0	5.0	15.0	0.8	0,0082	26.5	15.0	6.0	22.5	0.8
0,00082	18.0	11.0	5.0	15.0	0.8	0,010	26.5	15.0	6.0	22.5	0.8
0.0010	18.0	11.0	5.0	15.0	0.8	0,012	26.5	15.0	6.0	22.5	0.8
0,0012	18.0	11.0	5.0	15.0	0.8	0,015	26.5	16.0	7.0	22.5	0.8
0,0015	18.0	11.0	5.0	15.0	0.8	0,018	26.5	16.0	7.0	22.5	0.8
0,0018	18.0	11.0	5.0	15.0	0.8	0,022	26.5	17.0	8.5	22.5	0.8
0,0022	18.0	11.0	5.0	15.0	0.8	0,027	26.5	18.5	10.0	22.5	0.8
0,0027	18.0	11.0	5.0	15.0	0.8	0,033	26.5	18.5	10.0	22.5	0.8
0,0033	18.0	12.0	6.0	15.0	0.8	0,039	26.5	22.0	12.0	22.5	0.8
0,0039	18.0	12.0	6.0	15.0	0.8	0,047	26.5	22.0	12.0	22.5	0.8
0,0047	18.0	12.0	6.0	15.0	0.8	0,022	32.0	18.0	9.0	27.5	0.8
0,0056	18.0	13.5	7.5	15.0	0.8	0,027	32.0	18.0	9.0	27.5	0.8
0,0068	18.0	13.5	7.5	15.0	0.8	0,033	32.0	18.0	9.0	27.5	0.8
0,0082	18.0	14.5	8.5	15.0	0.8	0,039	32.0	20.0	11.0	27.5	0.8
0,010	18.0	16.0	10.0	15.0	0.8	0,047	32.0	20.0	11.0	27.5	0.8
0,012	18.0	16.0	10.0	15.0	0.8	0,056	32.0	22.0	13.0	27.5	0.8
0,015	18.0	19.0	11.0	15.0	0.8	0,068	32.0	22.0	13.0	27.5	0.8
0.0010	26.5	15.0	6.0	22.5	0.8	0,082	32.0	24.5	15.0	27.5	0.8
0,0012	26.5	15.0	6.0	22.5	0.8	0.10	32.0	28.0	14.0	27.5	0.8
0,0015	26.5	15.0	6.0	22.5	0.8	0.12	32.0	33.0	18.0	27.5	0.8
0,0018	26.5	15.0	6.0	22.5	0.8	0,15	32.0	33.0	18.0	27.5	0.8
0,0022	26.5	15.0	6.0	22.5	0.8

Dengan dielektrik fime polypropylene, tiang dengan fime poliester logam sisi ganda, bentuk semprotan bagian-logam twain non-induktif
Konfigurasi, elektroda timbal unilateralisme keluar dan ketenaran resindip retardant ePoxy disegel

Label:

Kontak Person: He

Tel: 86-13428425071

Faks: 86---88034843

Produk lainnya

333J1600V MMKP82 Kapasitor Low Loss Struktur Polypropylene Metalisasi Dua Sisi

Nomor model: MMKP82

Bahan: Polypropylene metalisasi

Rentang kapasitansi: 155k,1,5uf,1500nf

Aplikasi: Tujuan umum

233J1600V MMKP82 Kapasitor Dua Sisi Kapasitor Polypropylene Metalisasi

Kata kunci: Kapasitor MMKP82

Nomor model: MMKP82

Nilai Tegangan: 250V, 400V, 630V, 1000V, 1600V, 2000V

Rentang kapasitansi: 155k,1,5uf,1500nf

Hitam 682J1000V MMKP82 Kapasitor Sirkuit Tahan Api Aktif Dan Pasif Yang Sangat Baik

Nomor model: MMKP82

Nilai Tegangan: 250V, 400V, 630V, 1000V, 1600V, 2000V

Rentang kapasitansi: 0,0022uF~10uF

Aplikasi: Tujuan umum

Kapasitor 204J1600V MMKP82 / Kapasitor CBB Umum Disesuaikan

Nomor model: MMKP82

Nilai Tegangan: 250V, 400V, 630V, 1000V, 1600V, 2000V

Rentang kapasitansi: 0,0022uF~10uF

Pencetakan: pencetakan minyak / pencetakan laser

152J1000V MMKP82 Kapasitor 10v 100uf Kehilangan Rendah Kenaikan Suhu Inheren Kecil

Nomor model: MMKP82

Aplikasi: Tujuan umum

Rentang kapasitansi: 0,0022uF~10uF

Tegangan antar terminal: 2Un 1 Os

MMKP82 Resonance Plastic Shell Double-Sided Metallized Polypropylene Film Capacitor Dalam High Voltage High Frequency Pulse Circuit 154J630V P15MM

MMKP82 Resonance Plastic Shell Double-Sided Metallized Polypropylene Film Capacitor Dalam High Voltage High Frequency Pulse Circuit 154J630V P15MM

MMKP82 Resonance Plastic Shell Double-Sided Metallized Polypropylene Film Capacitor Dalam High Voltage High Frequency Pulse Circuit 154J630V P15MM

Kondensator Tegangan Tinggi MMKP82

Kondensator Frekuensi Tinggi MMKP82

MMKP82 Resonansi Plastik Shell Kondensator

Kapasitor Film Logam,

Kapasitor Film PP,
