MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V

Gambar besar : MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V

Detail produk:

Tempat asal:	chiana
Nama merek:	littelfuse
Sertifikasi:	E71747
Nomor model:	Mage

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	500
Harga:	3USD
Kemasan rincian:	200x200x200cm
Syarat-syarat pembayaran:	T/T
Menyediakan kemampuan:	300000

Kontak

MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V

Deskripsi

Menyoroti:

Fuse untuk kendaraan listrik berat

Fuse kendaraan listrik 32V

Bolt Down Fuse Kendaraan Listrik

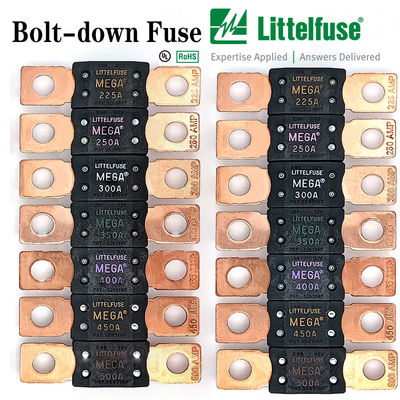

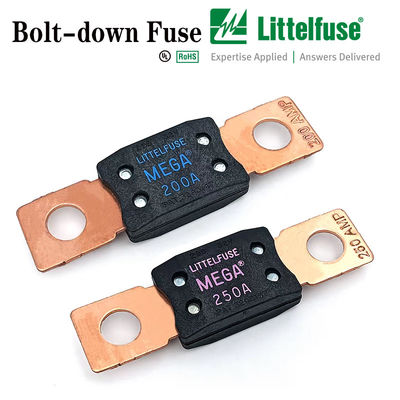

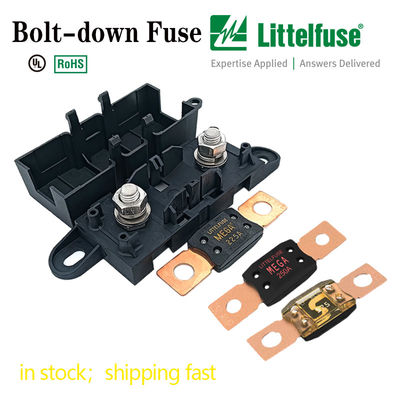

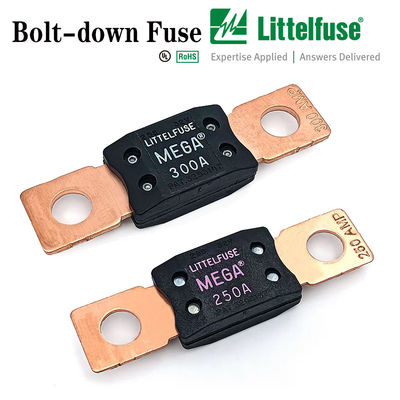

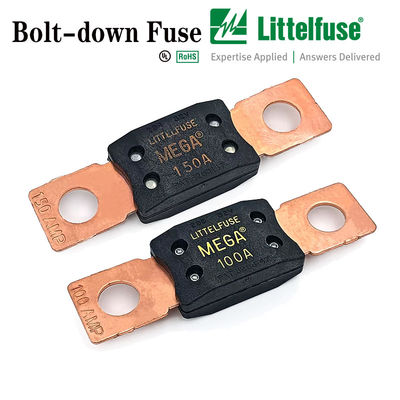

MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V 0
Description

MEGA® SLO-BLO® automotive fuses employ diffusion pill technology

to provide time-delay circuit protection. MEGA fuses are ideal for

use on batteries, alternators, and heavy gauge wire harnesses that

experience large inrushes of current. The MEGA SLO-BLO fuses with

ratings of 40 A to 250 A ensure continuous current flow. Use MEGA

fuses with ratings of 300 A to 500 A only for short circuit protection.
Features & Benefits

SEPCIFACATONGS

Voltage Rating: 32 V DC

Interrupting Rating: 2000 A @ 32 V DC

Recommended

Environmental Temperature:

–40 ˚C to +125 ˚C

Terminals Material: Copper (Silver plated copper available)

Housing Material: PPA-GF33HS

(U.L. 94 Flammability rating - HB)

Clear Top Housing Material: PES (top)

(U.L. 94 Flammability rating - V0)

PPA-GF33HS (bottom)

(U.L. 94 Flammability rating - HB)

Mounting Torque M6: 8-14 Nm

Mounting Torque M8: 12-18 Nm

Comply With: ISO 8820-5

Dimensions

MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V 2
